Application:
New energy lithium battery equipment, photovoltaic equipment, mobile robots, parallel manipulators, printing machinery, packaging machinery, pharmaceutical machinery, pipe bending machines, spring machines, injection molding manipulators, electric forklifts, machine tools, and non-standard automation equipment, automatic doors, unmanned distribution platforms Cars, service/communication robots, industrial robots, conveyor belts, electric wheelchairs, medical beds, CT scanners
Product characteristics:
Space saving, high rigidity, and high torque:
・Can be installed on any motor worldwide
・No oil leakage
・Easy to maintain

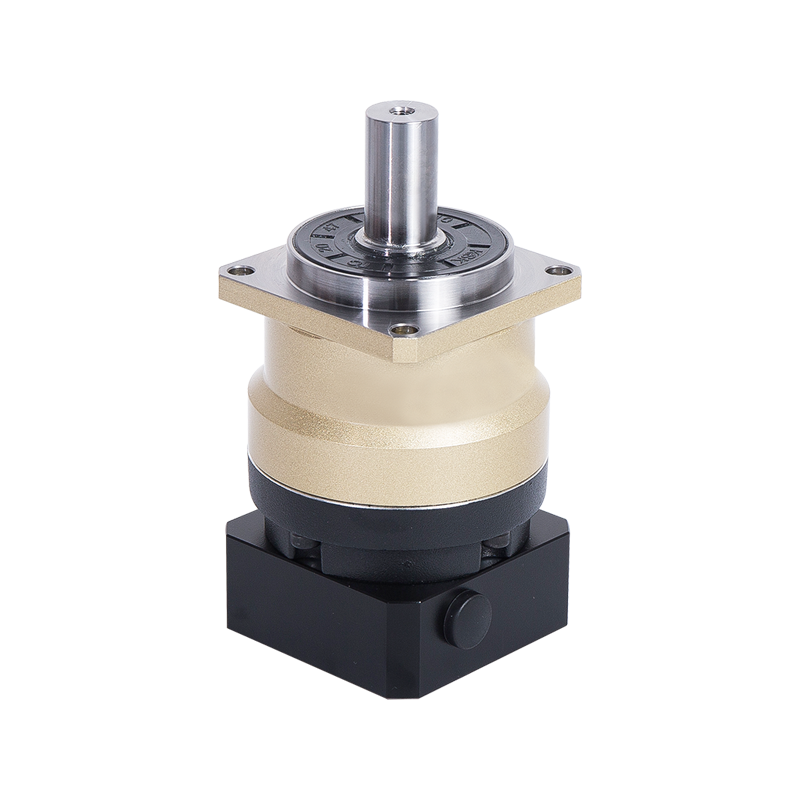

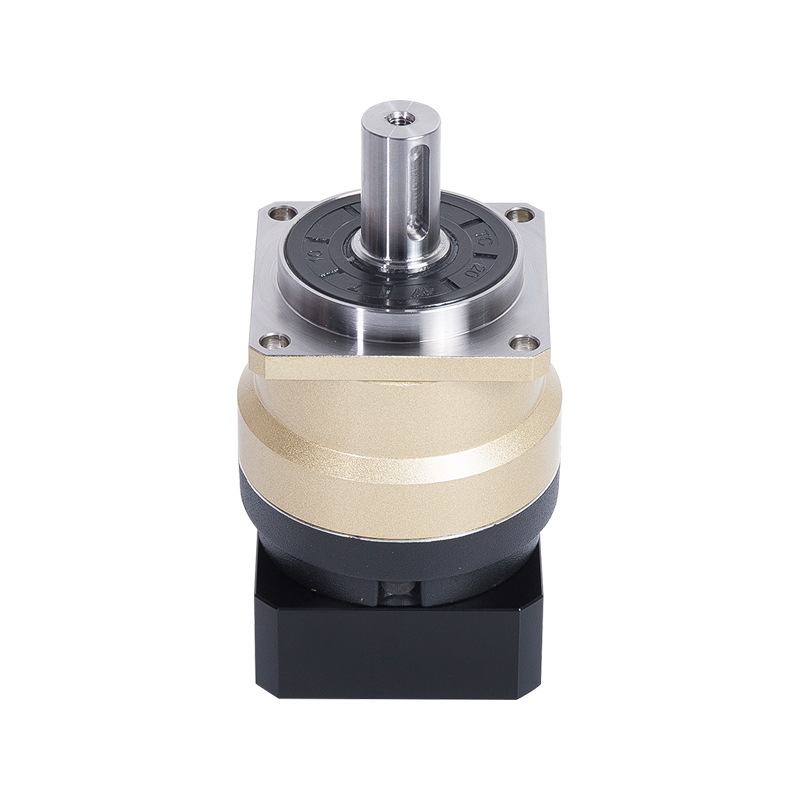

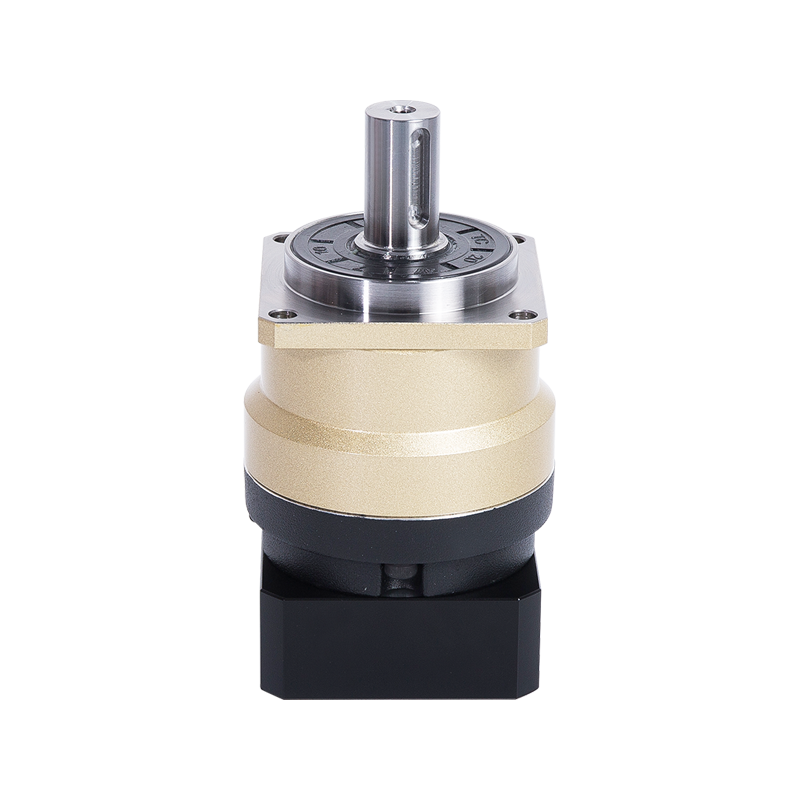

Economical star reducer/used with servo motor
Type:
(Single Stage /Double Stage)
Frame size:
060/090/115/140
Series | MPB |
Backlash | ≤3/≤5 |
Output torque | 32-540 |
Service temperature | -10-90 |
Class of protection | IP65 |
Working life | 20000h |
Ratio | 3:1-100:1 |
AD flange/sleeve | Yes |
Internal oil seal | Yes |
Lubrication mode | Lifetime lubrication |
